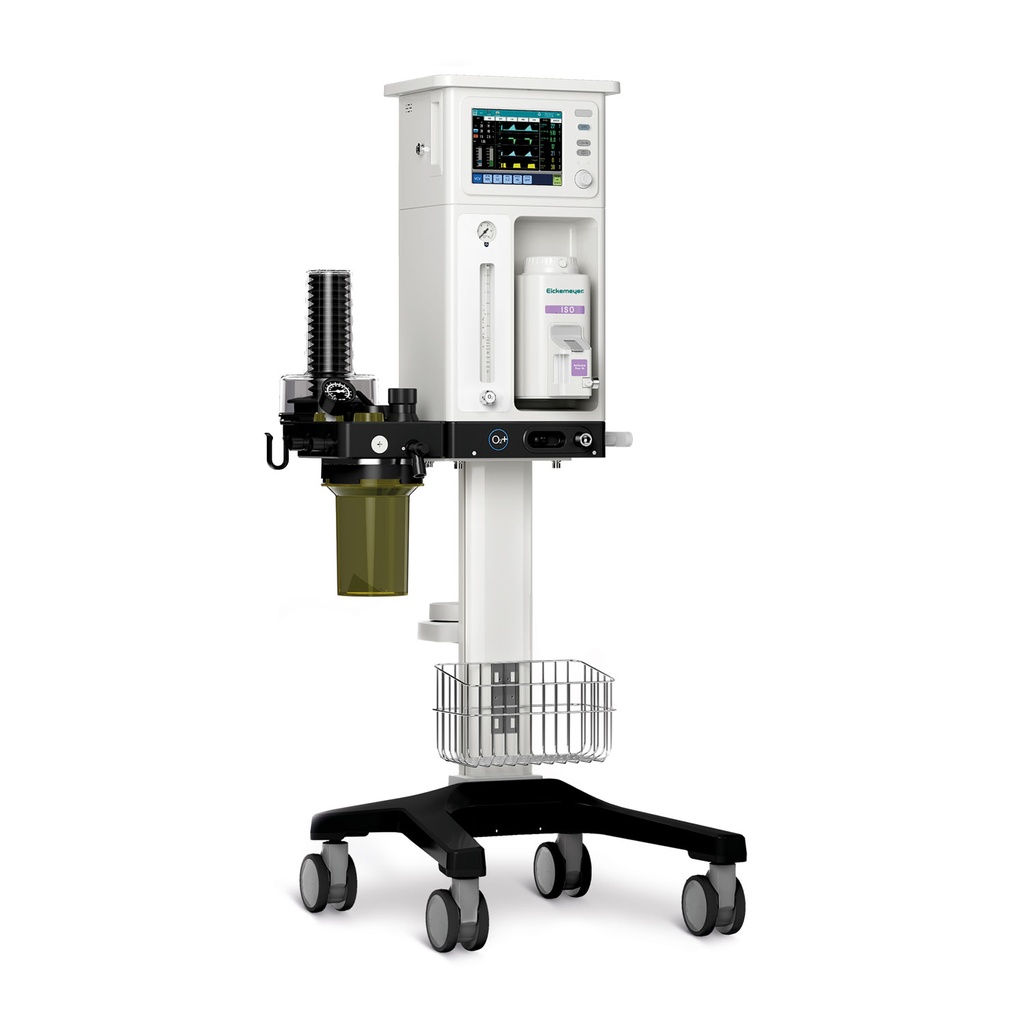

EICKEMEYER® NarkoVet PRO

Maximum Safety for Your Patients with the EICKEMEYER® NarkoVet PRO

The main cause of serious anaesthesia incidents in veterinary practices is the patient’s unnoticed apnoea. Routinely controlled ventilation helps to drastically minimise this risk, ensuring optimal safety for your patients. The EICKEMEYER® NarkoVet PRO features an integrated ventilator powered by an electronic turbine, eliminating the need for drive gas from an external compressor. To protect your patients and staff, the system performs an automatic leak test at start-up.

Anaesthesia Machine

• O₂ Flowmeter (0.1 – 4.0 l/min)
• Oxygen bypass (O₂ flush)
• Isoflurane vaporiser, key filled
• CO₂ absorber lime container with quick-change system
• Infinitely adjustable pressure relief valve
• Pressure gauge to display the system pressure
• External fresh gas outlet for open system
• Easy change of circuits using a toggle switch
• Holder for anaesthetic gas filter

Ventilator

• Electronically controlled, no compressed air source required
• All ventilation parameters on a large, 8" touchscreen
• Patient safety through acoustic and visual alarms
• Automatic calculation of ventilation volume based on weight
• Patients from 0.5 – 150 kg can be ventilated
• Tidal volume from 5 ml, for precise ventilation of the smallest patients
• Tidal volume: 5 - 1,500 ml
• Maximum ventilation pressure: 3 - 50 cmH₂O
• Trigger pressure -20.0 to -1 cmH₂O
• Mains and battery operation, battery life min. 2 hours

Supported ventilation modes

• Volume-controlled ventilation (VCV)
• Volume-supported (VS)
• Pressure-controlled ventilation (PCV)
• Synchronised intermittent mandatory ventilation – pressure-controlled (SIMV-PC)
• Continuous positive airway pressure / pressure-supported ventilation (CPAP/PSV)
• Pressure-regulated volume-controlled (PRVC)
• Synchronised intermittent mandatory ventilation – Pressure-regulated volume-controlled (SIMV-PRVC)
• Pressure-supported ventilation protection (PSVPro)Ventilation rate: 4 - 100 bpm

Further Specs

• Incl. O₂ concentrator tray and patient tube with rebreathing bag (1 l)
• Dimensions (in cm): L 64 x W 67 x H 140
• Weight: approx. 44 kg
