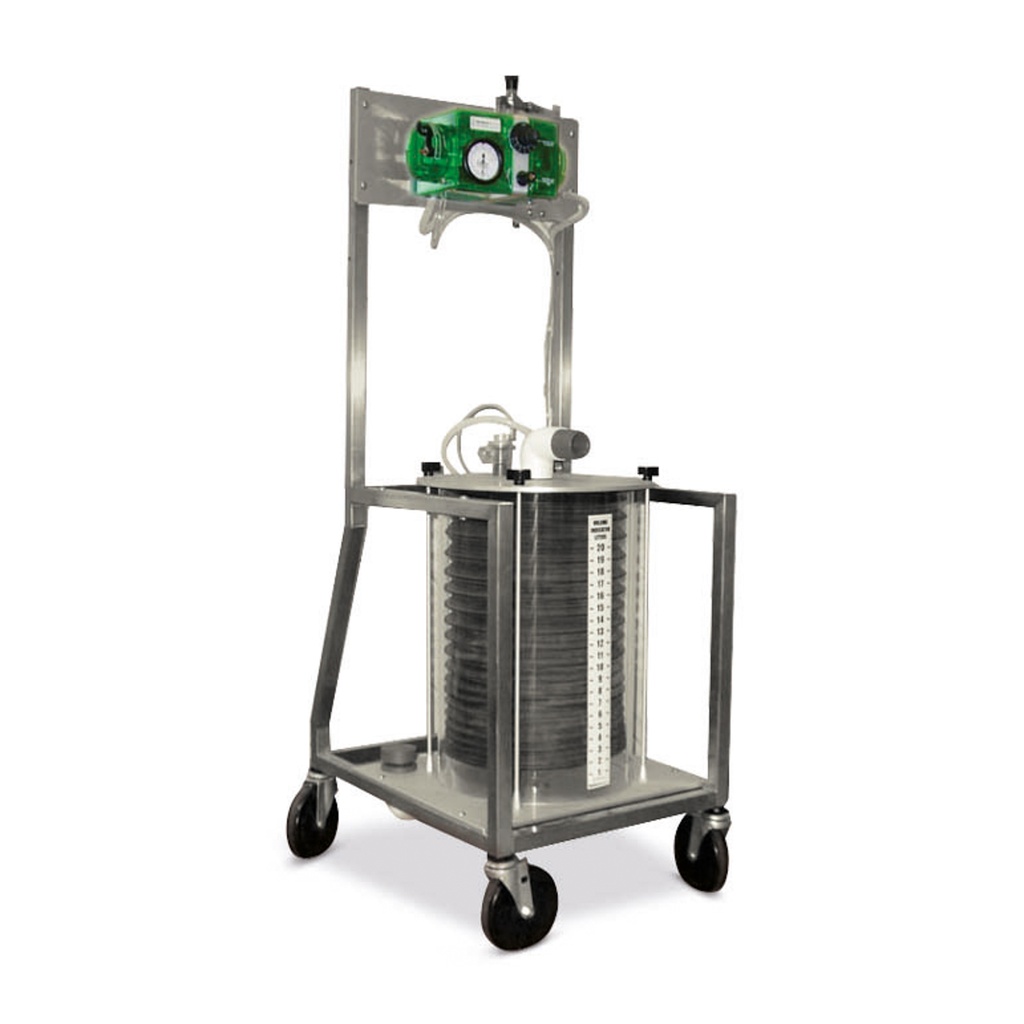

LAV 3000 Ventilator, Large Animal, 540 x 580 x 1300mm
The LAV-3000 is designed for facilities that currently use a passive anaesthesia machine and wish to expand their capabilities to include full ventilation of their patients. Suitable for large animal anaesthesia machines.
- Modified bird Mark 7 (rtm): -0.5 to -5 cm H2O
- Patient Sensitivity: 5 to 65 cm H2O
- Inspiratory Pressure: 5 sec. min./15 sec. max.
- Expiratory Time Control: 0 lpm to 450+ lpm
- Flowrate: push/pull hand timer
- Manual Cycle Control
- Oxygen Flush: 85 lpm
- Volume Delivery Capacity: 20,000cc
- Patient Circuit Diameter / Length: 2.0″ / 5′
- Standard Endotracheal Tube Adaptor: Cole, NAD,& Matrx
- Operating Inlet Pressure: 50 psi
- Dimensions (cm): 53 x 58 x 128 (W x D x H)
* Please note that addtion parts and installation are needed with this unit. Please contact our team for further details.
