Multi Parameter Monitor ePM 12M incl. IBP + CO2 AG module with O2

https://www.eickemeyer.de//web/image/product.template/102217/image_1920?unique=3680565

€ 0.00 0.0 EUR € 0.00

€ 8,495.00

Price visible after login

Item No. 321940

    This combination does not exist.

    Login

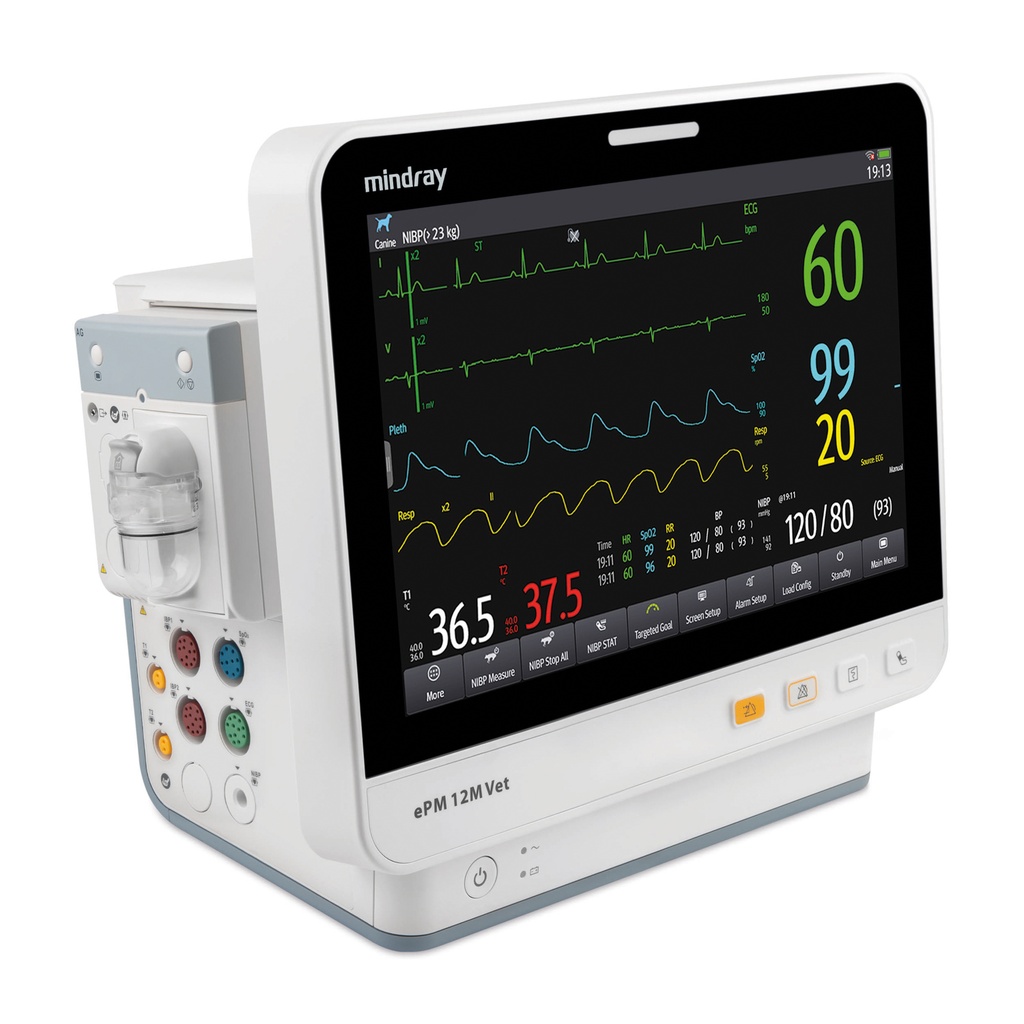

    The ePM 12M Vet is an intelligent surveillance monitor for the professional veterinary OR. Thanks to the large touch display, the vital functions can also be read easily from a distance. The fanless design ensures a quiet treatment environment.

    The following parameters can be monitored with the ePM 12M Vet:

    • Respiratory rate (display between 0 and 200 rpm)
    • Pulse rate (display between 20 and 350 bpm)
    • Oxygen saturation (SpO₂) (display between 0 and 100%)
    • Blood pressure (NIBP) (display between 10 and 290 mmHg)
    • Temperature (display between 0 and 50 °C)

    • 3-lead ECG

    • Please note: we strongly recommend using the LifeVet Scavenging Kit (321881) for the discharge of used measuring gas when using this monitor with anaesthetic gas.

    The module included in the scope of delivery allows the following additional parameters to be monitored:

    • Capnography (EtCO₂) in the sidestream measurement method (display between 0 and 150 mmHg)
    • Invasive blood pressure (IBP) measurement (display between -50 and 300 mmHg)
    • Multigas (display of the anesthetic gases N₂O, DES, ISO, ENF, HAL, SEV)
    • Oxygen (O₂) (display between 0 and 100%) (only 321940)

    Technical specifications

    • High-resolution 12.1" LED backlit touchscreen (resolution: 1,280 x 800 pixels)
    • Monitor with gesture control and 720° wide viewing angle
    • Display of up to 10 curves possible
    • Freely selectable alarm limits
    • 360° visible alarm display
    • Data storage for up to 48 hours of trend curves, 120 hours of table and graphic trends, 1,000 NIBP measurements and 100 alarm events
    • Data export via USB stick possible
    • Battery and mains operation possible
    • Li-Ion battery (operating time up to 4 hours with fully charged battery)
    • Outputs: USB 2.0, VGA output and RJ45 (for software update)
    • Scope of delivery: Monitor, Li-Ion battery, power supply, NIBP cable and 5 cuffs, ECG cable with clamps, SpO₂ sensor with 2 clips, temperature probe, IBP sensor kit, capnography & multigas accessory set, user manual
    • Dimensions (in cm): W 31 x H 29 x D 17
    • Weight: approx. 4.8 kg (without module)

    • Please note: Please also order the exhaust air connection set (321881).

    • Incl. IBP + CO₂ + AG module with O₂
