X-Ray Machine HiRay 5

https://www.eickemeyer.de//web/image/product.template/16157/image_1920?unique=9fea8fc

€ 0.00 0.0 EUR € 0.00

€ 9,195.00

Price visible after login

Item No. 701105

    This combination does not exist.

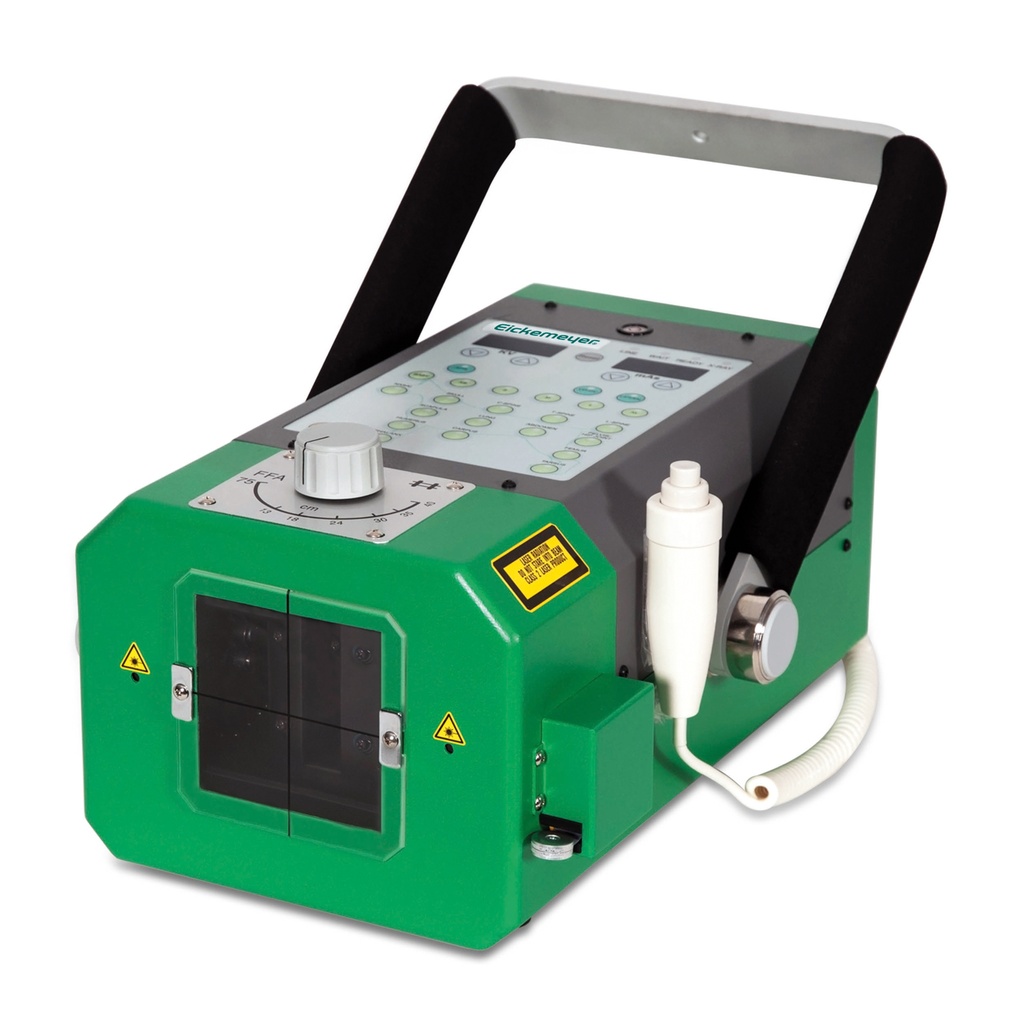

    The portable HiRay 5 combines ultimate power with extreme compactness. It produces a nominal output of 5 kW, while weighing only 14 kg! The greater mA range allows for shorter exposure times. This is ideal for imaging regions with rapid motion such as the small animal thorax.

    Features:

    • High-voltage setting: 120 kV / 100 mAs (30 mA)
    • High-current setting: 50 kV / 32 mAs (100 mA)
    • kV setting: 40 to 120 kV (in 1 kV steps)
    • 26 mAs settings, 0.3 - 100 mAs, with illuminated LCD display
    • Generator: High frequency inverter, 5 kW nominal output
    • X-Ray Tube Focal spot: 1.8 mm
    • Collimator with bright halogen bulb and automatic timer
    • Integrated laser beam for easy distance measurement
    • 2-speed manual exposure switch on 2.5m curled cable
    • Dimensions (cm): L 35 x W 20.3 x H 16 cm
    • Weight: 14 kg
    • Foot switch optional
