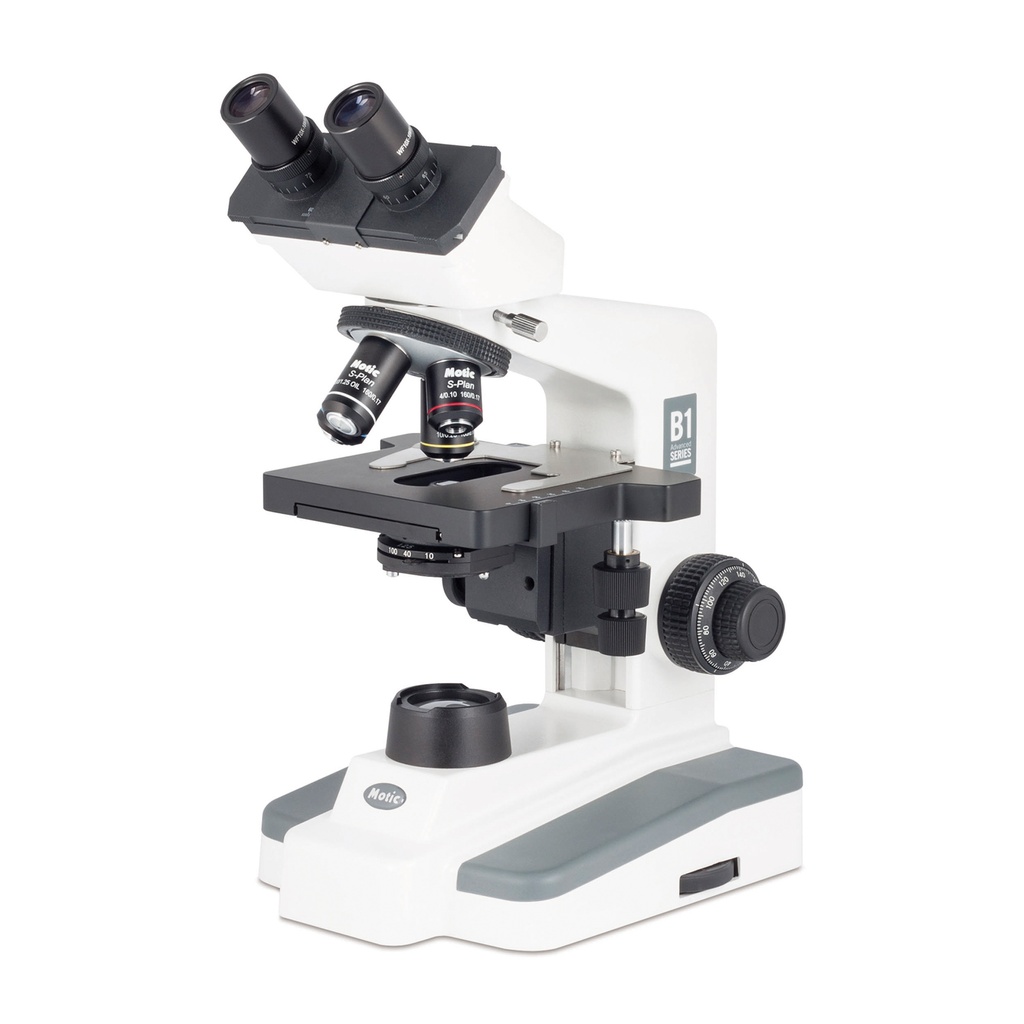

Motic B1 Elite microscoop
MOTIC’s B1 series has long been a stalwart of reliable microscopy providing a solid platform for imaging. In this new B1 Elite version, we have upgraded it with new optics and mechanics normally only found in more expensive models, which has ensures this lines's competitiveness and performance well into the next decade.
Technical Specifications:
- Observation Tube: Binocular, sliding type
- Interpupillary distance: 55-75mm
- Diopter adjustment: On both tubes: +/- 5 diopter
- Inclination: 45° inclined, 360º rotating
- Eyepiece: WF10X/18 mm
- Semi-Planachromatic Objectives: 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
- Stage: Built-in low position coaxial rackless mechanical stage with sample holder
- Stage size: 140 x 135 mm
- Upper limit stop: Preset and adjustable
- Focusable 1.25 N.A. Abbe condenser with iris diaphragm
- Fine focus precision: 2 μm minimum increment
- 3 W LED illumination with intensity control
- Dimensions (cm): W 19 x D 24.5 x H 38
- Weight: 6.8 kg
Includes: Dust cover and Immersion oil
