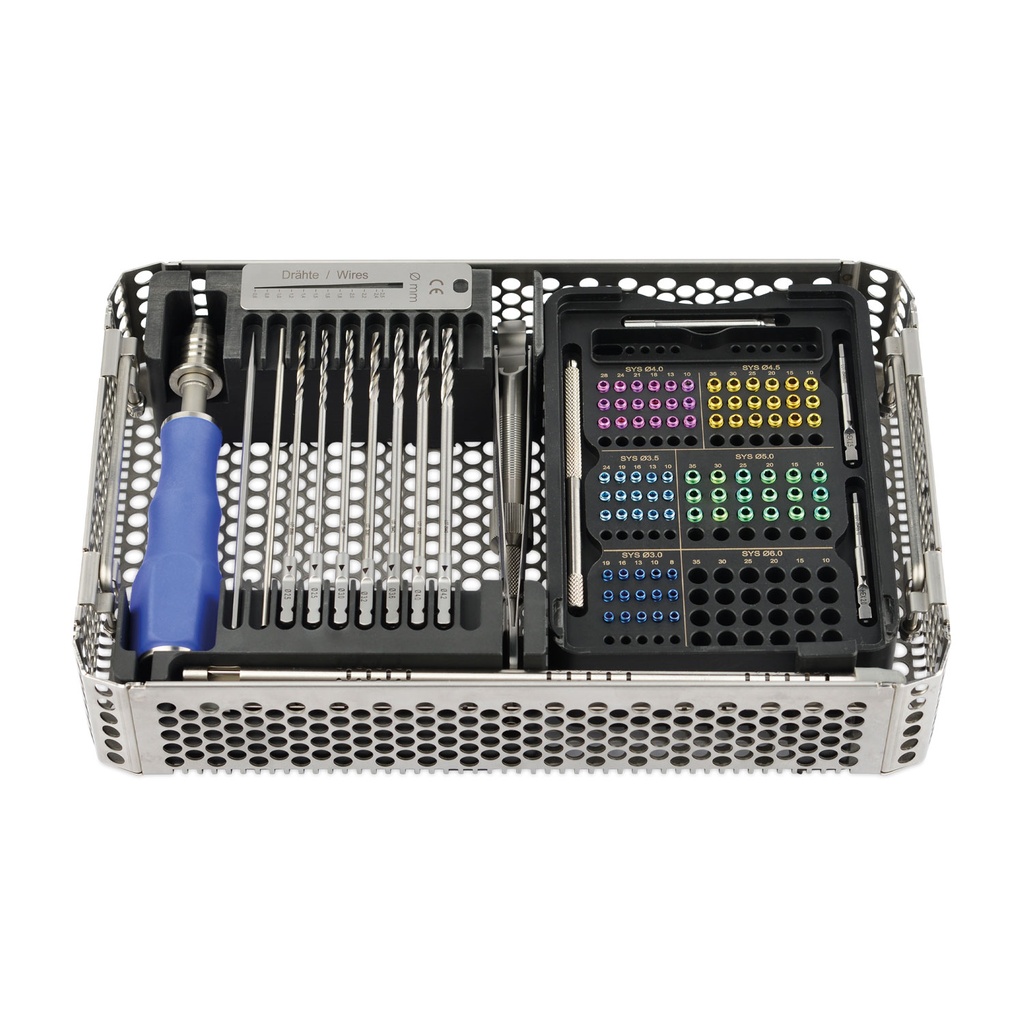

ZLig II Interference Screw and Instrumentation Set

Zlig2 – the instrumentation

A small and inexpensive set of instruments is required to perform this innovative cruciate ligament surgery method. The threads of the specially developed titanium interference screws are round so they do not cause any damage to the fibres of the Zlig.

Complete set, consisting of;

• 197501 - Zlig2 Instrumentation Tray

• 197502 - Zlig2 Interference screw tray with cover

• 197503 - Spiral drill cannulated, 1.2/ Ø2.5/120mm, AO - quick coupling

• 197504 - Spiral drill cannulated, 1.2/Ø3.0/120mm, AO - quick coupling
• 197505 - Spiral drill cannulated, 2.2/Ø3.6/120mm, AO - quick coupling

• 197506 - Spiral drill cannulated, 2.2/Ø 4.2/120mm, AO - quick coupling

• 197507 - Spiral drill not cannulated, Ø2.5/120mm, AO - quick coupling

• 197508 - Spiral drill not cannulated, Ø3.2/120mm, AO - quick coupling
• 197509 - Spiral drill not cannulated, Ø4.0/120mm, AO - quick coupling
• 197510 - HEX - KIRSCHNER - wire SW2.5/120mm
• 191518 - Attachment for hexagonal K-wire HEX 2.5, AO attachment
• 191958 - Screwdriver handle HEX cannulation 2.9, blue, AO shaft
• 197511 - Screwdriver blade cannulated, Ø1.2, HEX 2.0/50mm, AO – quick coupling
• 197512 - Screwdriver blade cannulated, Ø1.6, HEX 2.5/50mm, AO – quick coupling
• 191926 - Wire Loop Ø 0.5/600mm (2)
• 197513 - Tube for wire loop Ø2.5/120mm, cannulated Ø2.0mm
• 101710 - Micro scalpel blades, 10cm
• 185779 - Plates/screw holding forceps, stainless steel
• 187737 - Depth gauge 50mm probe 1.3mm
• 185119 - KIRSCHNER- wire cylinder up to 200mm length (2)
• 180500 - V-slot template for pins, Ø0.6 - 2.5mm and screws length 3mm - 45mm, stainless steel
• 191520 - Zlig K-Wire, blunt/blunt, Ø1.0 x 190mm (4)

• 191521 - Zlig K-Wire, trocar/trocar, Ø1.8x190mm (4)

• 191535 - Zlig Interference Screw cannulated, 1.1/Ø3.0/8.0mm, HEX 2.0, dark blue (3)

• 191533 - Zlig Interference Screw cannulated, 1.1/Ø3.0/10.0mm, HEX 2.0, blue (3)
• 191576 - Titanium Interference Screw cannulated, 1.1/Ø3.0x13mm, HEX 2.0, blue (3)
• 191577 - Titanium Interference Screw cannulated, 1.1/Ø3.0x16mm, HEX 2.0, blue (3)
• 191583 - Titanium Interference Screw cannulated, 1.1/Ø3.0 x L19mm, HEX 2.0, blue (3)
• 191536 - Zlig Interference Screw cannulated, 1.1/Ø3,5/10.0mm, HEX 2.0, light blue (3)
• 191537 - Zlig Interference Screw cannulated, 1.1/Ø3.5/13.0mm, HEX 2.0, light blue (3)
• 191578 - Titanium Interference Screw cannulated, 1.1/Ø3.5x16mm, HEX 2.0, light blue (3)
• 191579 - Titanium Interference Screw cannulated, 1.1/Ø3.5x19mm, HEX 2.0, light blue (3)
• 191584 - Titanium Interference Screw cannulated, 1.1/Ø3.5 x L24mm, HEX 2.0, light blue (3)
• 191541 - Zlig Interference Screw cannulated, 1.1/Ø4.0/10.0mm, HEX 2.0, magenta (3)
• 191542 - Zlig Interference Screw cannulated, 1.1/Ø4.0/13.0mm, HEX 2.0, magenta (3)
• 191572 - Titanium Interference Screw cannulated, 1.1/Ø4.0x18mm, HEX 2.0, magenta (3)
• 191580 - Titanium Interference Screw cannulated, 1.1/Ø4.0x21mm, HEX 2.0, magenta (3)
• 191581 - Titanium Interference Screw cannulated, 1.1/Ø4.0x24mm, HEX 2.0, magenta (3)
• 191582 - Titanium Interference Screw cannulated, 1.1/Ø4.0x28mm, HEX 2.0, magenta (3)
• 191545 - Zlig Interference Screw cannulated, 1.1/Ø4.5/10.0mm, HEX 2.5, gold (3)
• 191546 - Zlig Interference Screw cannulated, 1.1/Ø4.5/15.0mm, HEX 2.5, gold (3)
• 191547 - Zlig Interference Screw cannulated, 1.1/Ø4.5/20.0mm, HEX 2.5, gold (3)
• 191548 - Zlig Interference Screw cannulated, 1.1/Ø4.5/25.0mm, HEX 2.5, gold (3)
• 191573 - Titanium Interference Screw cannulated, 1.1/Ø4.5x30mm, HEX 2.5, gold (3)
• 191585 - Titanium Interference Screw, 1.1/Ø4.5x35mm, HEX 2.0, gold (3)
• 191544 - Zlig Interference Screw cannulated, 2.9/Ø5.0/10.0mm, HEX 2.5, green (3)
• 191566 - Zlig Interference Screw cannulated, 2.9/Ø5.0/15.0mm, HEX 2.5, green (3)
• 191568 - Zlig Interference Screw cannulated, 2.9/Ø5.0/20.0mm, HEX 2.5, green (3)
• 191564 - Zlig Interference Screw cannulated, 2.9/Ø5.0/25.0mm, HEX 2.5, green (3)
• 191574 - Titanium Interference Screw cannulated, 2.9/Ø5.0x30mm, HEX 2.5, green (3)
• 191575 - Titanium Interference Screw cannulated, 2.9/Ø5.0x35mm, HEX 2.5, green (3)

Ligaments Purchased Separately
