DigiVet® DR Equine WLAN-Panel Set

For digital X-ray imaging in the mobile equine practice

The DigiVet® DR Equine WLAN panel set impresses with its simple operation, fast, wireless transmission speed and razor-sharp, high-resolution X-ray images.

• Active area of ​​25 x 30 cm (10 x 12")
• Highest resolution through CsI PLUS scintillator
• High spatial resolution with a field size of 124 µm for each pixel
• Fast, wireless data transmission via WLAN
• Stable and reliable automatic exposure detection (Anytime™)
• Direct communication with smart devices (Inside AP™)
• Viewer software runs on the Windows™ operating system (VXvue™)
• Areas of application: horse and cephalometrics

Technical specifications:

• Scintillator: CsI (DQE technology for reduced dose)
• Pixel pitch: 124µm x 124µm
• Resolution: > 4 lp/mm
• Active area: 2048 x 2560 pixels
• Analog to Digital Conversion (AD Conversion): 16 bits
• Grayscale: 16,384 levels
• X-ray voltage range: 40 – 150 kVp
• X-ray generator interface: Automatic trigger: AED (Automatic Exposure Detection) mode
• Wireless interface: IEEE 802.11ac (2.4GHz / 5GHz dual band)
• Image acquisition time (by cable): 1.5 sec.
• Image acquisition time (via WiFi): 3 sec.
• Battery : Lithium Ion, 3,400 mAh, 8 hours standby or approx. 750 shots
• Dimensions (in cm): L 28.7 x W 35 x H 1.5
• Weight: 2.1kg

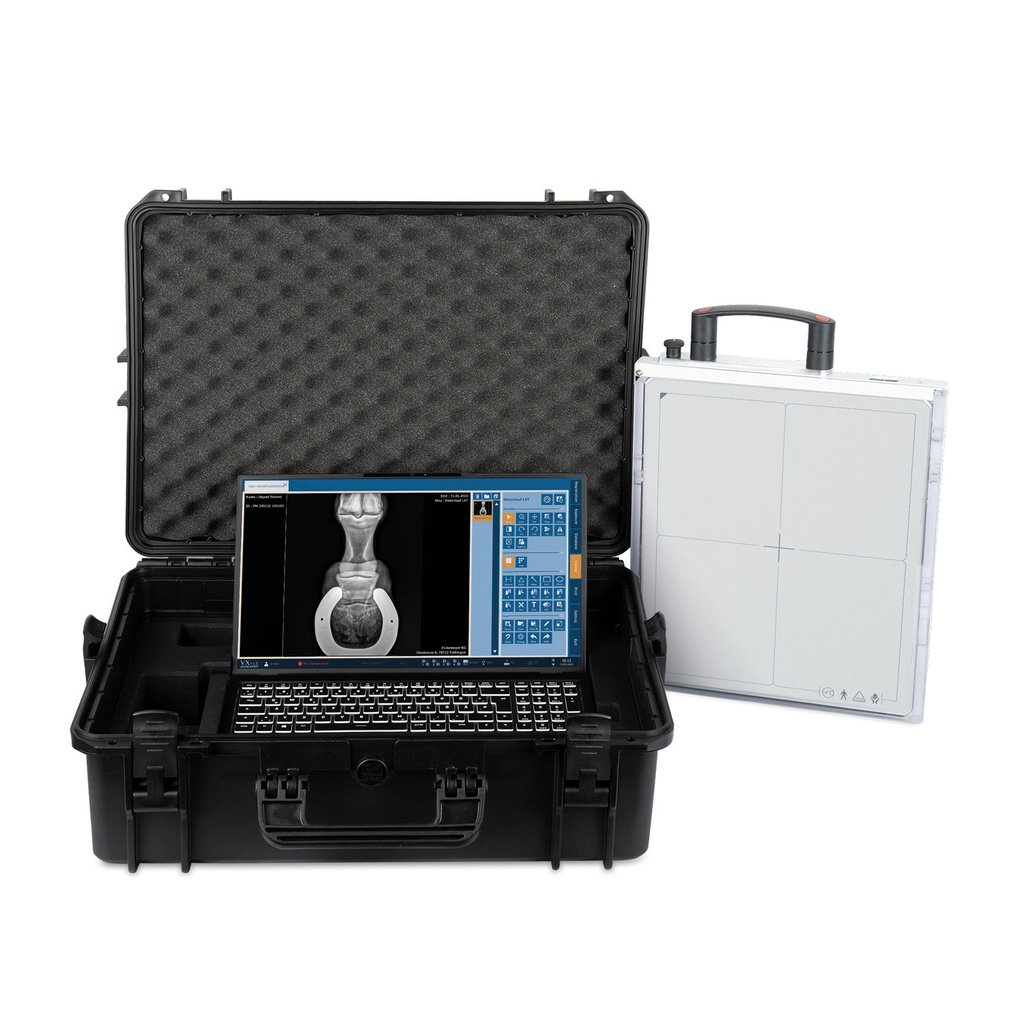

Set consists of:

• DigiVet® DR Equine WiFi panel
• VXvue™ image editing software
• High-end notebook with 15.6'' full HD monitor
• PODOBLOCK® protection box
• Outdoor case for all components
